Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution

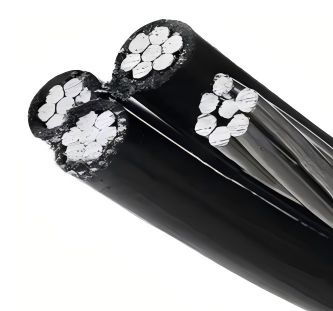

Large Image : Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	15/35kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	PE/PVC

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution

APPLICATION

Overhead Power Distribution‌
Rural Electrification & Remote Areas‌
Industrial & Commercial Installations‌
Service Connections‌
Renewable Energy Projects‌

CONSTRUCTION

Phase conductors: AAC
Insulation: XLPE, UV-resistant.
Neutral-supported: AAAC
Street lighting conductor: AAC
Core identification: Ribs or numbers or colors stripe.

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution 0

SPECIFICATION

Number of Cores x Nominal Cross Section	Approx. Overall Diameter	Approx. Weight	Max. DC Conductor resistance at 20℃	Minimum Breaking Load	Current Rating
No.×mm²	mm	Kg/Km	Ω/Km	kN	A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.91/12.1	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.91/12.1	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.20/12.1	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.20/12.1	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868/12.1	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868/12.1	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641/12.1	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630/1.20	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630/0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630/0.868/1.20	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630/0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630/0.641/1.20	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630/0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630/0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630/0.320/1.91	13.5/2.3	240/72

OUR PLANTS

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution 3

PROJECTS

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution 4

WHY US?

Overhead Insulated ABC Cable NFC 33-209 0.6/1kV for Power Distribution 5

FAQ

Q:What is Overhead Insulated ABC Cable (NFC 33-209)?‌

A bundled conductor system with ‌XLPE insulation‌, designed for ‌low-voltage (0.6/1kV) overhead power distribution‌, compliant with French standard ‌NFC 33-209‌.
Q:What are the key components of this cable?‌

A: Typically includes ‌aluminum conductors (AL)‌, ‌XLPE insulation‌, and optional ‌neutral/earth conductors‌ (e.g., 3×50mm² + 1×54.6mm²).
Q: Where is it commonly used?‌

A: Urban/rural power grids, industrial sites, and renewable energy projects (e.g., solar/wind farm interconnections).
Q: What are the advantages over bare conductors?‌

A: Safer‌ (reduced short-circuit risks), ‌lower maintenance‌ (weather-resistant), and ‌easier installation‌ (pre-fabricated bundles).
Q: Is it suitable for harsh climates?‌

A:Yes, with ‌UV-resistant XLPE‌ and optional ‌galvanized steel wires‌ for mechanical strength.
Q: What installation methods are recommended?‌

A: Use ‌self-supporting or tensioning hardware‌; avoid sharp bends (minimum bending radius: 12× cable diameter).
Q: How to select the right configuration?‌

A:Consider load capacity (e.g., 3×50mm² for 150A circuits) and local grid codes (neutral conductor sizing).
