EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable

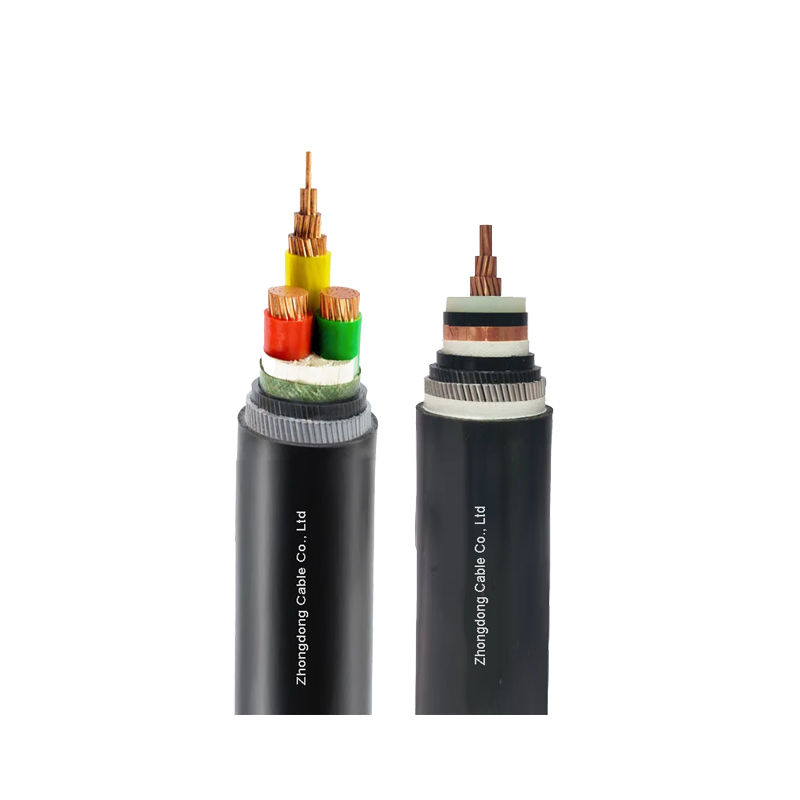

Large Image : EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable

Description

Features:	Fire Rated	Insulation:	XLPE
Voltage:	0.6/1kV	Conductor Material:	Copper
Application:	Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying	No Of Core:	1,2,3,4,5

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable

APPLICATION

Suitable for power supply lines with flame retardant requirements, such as urban underground power grids, power station outgoing lines, and internal power lines of industrial and mining enterprises.

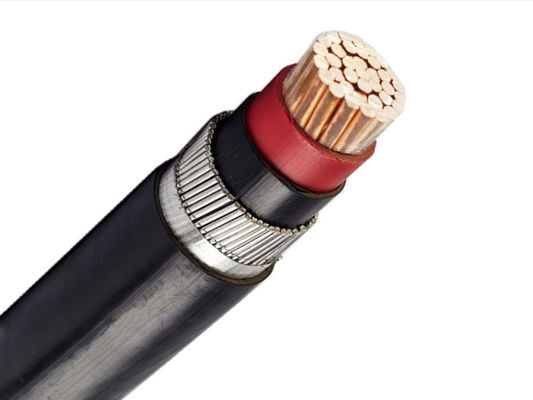

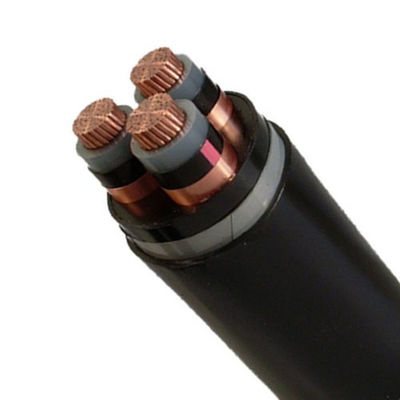

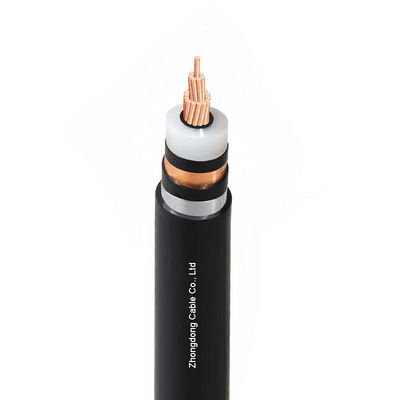

CONSTRUCTION

Conductor: Tightly press circular conductor
Conductor shield: Semi conductive shielding material (below 500mm ²) Semi conductive tape+semi conductive shielding material (500mm ² and above)
Insulation: XLPE
Insulation shielding: Peelable semiconducting shielding material
Metal shielding layer: Copper Tape Copper wire (35kV, 500m ² and above)
Filler: Non hygroscopic filling rope
Binder Tape: Non hygroscopic straps
Armor: 1 core: stainless steel tape 3 core: galvanized steel tape
Inner and outer sheaths: 90 ℃ flame retardant polyvinyl chloride

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable 0

CHARACTERISTICS

Voltage Rating Uo/U: 8.7/10(12)kV,8.7/15(17.5)kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core:15D Three Core: 12D (D is the actual outer diameter of the cable)

SPECIFICATIONS

Specs mm²	Conductor diameter mm	Nominal thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Nominal thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×25	5.6±0.1	17.2	24.1	926	3×25	5.6±0.1	17.2	47.3	3168
1×35	6.6±0.2	18.2	25.3	1065	3×35	6.6±0.2	18.2	49.7	3609
1×50	7.6±0.2	19.2	26.3	1215	3×50	7.6±0.2	19.2	52.2	4152
1×70	9.2±0.2	20.8	28.0	1478	3×70	9.2±0.2	20.8	55.8	4988
1×95	10.9±0.2	22.5	29.7	1781	3×95	10.9±0.2	22.5	60.0	6051
1×120	12.2±0.2	23.8	31.2	2066	3×120	12.2±0.2	23.8	63.1	6976
1×150	13.6±0.2	25.2	32.6	2370	3×150	13.6±0.2	25.2	66.3	8038
1×185	15.2±0.2	26.8	35.7	3105	3×185	15.2±0.2	26.8	70.1	9343
1×240	17.4±0.2	29.0	38.0	3744	3×240	17.4±0.2	29.0	75.4	11343
1×300	19.5±0.2	31.1	40.3	4412	3×300	19.5±0.2	31.1	81.6	14262
1×400	22.0±0.2	33.6	43.2	5297	3×400	22.0±0.2	33.6	87.5	17106
1×500	24.8±0.2	37.2	47.1	6520	3×500	24.8±0.2	37.2	95.8	21121
1×630	28.2±0.2	40.6	50.7	7997	3×630	28.2±0.2	40.6	104.0	25921
1×800	33.7±0.2	46.1	56.5	10048

OUR FACTORY

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable 4

PROJECTS

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable 5

PARTNERS

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable 6

WHY US

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable 8

FAQ

Q: What does EAC certification mean for these cables?
A: EAC certification confirms compliance with Eurasian Economic Union (EAEU) technical regulations, ensuring the cables meet safety and performance standards for member countries (Russia, Kazakhstan, etc.).
Q. Why are these cables flame-retardant?
A: Flame-retardant additives in the insulation and jacket materials prevent rapid flame spread in case of fire, meeting IEC 60332-1/2 standards.
Q:. What applications suit 8.7kV vs 15kV cables?
A: 8.7kV: Industrial plants, medium-range power distribution; 15kV: Urban grids, high-load substation connections
Q. How does conductor size (25-800mm²) affect performance?
A: Larger cross-sections (e.g., 800mm²) reduce resistance, enabling higher current capacity (up to 1,000A) for long-distance transmission.
Q: Are these cables suitable for underground installation?
A: Yes, when equipped with armored layers (e.g., steel wire armor), they resist mechanical damage and moisture in underground ducts.
Q. What bending radius is recommended during installation?
A: Minimum bending radius is 12× cable diameter for unarmored and 15× for armored versions to avoid insulation stress.
Q. Do these cables require special maintenance?
A: No, XLPE insulation is moisture-resistant and requires only periodic thermal inspections via infrared scanning.
Q. What documentation is needed for EAC customs clearance?
• EAC certificate of conformity
• Test reports (voltage withstand, flame retardancy)
• Technical passport with HS code 8544.49.10
