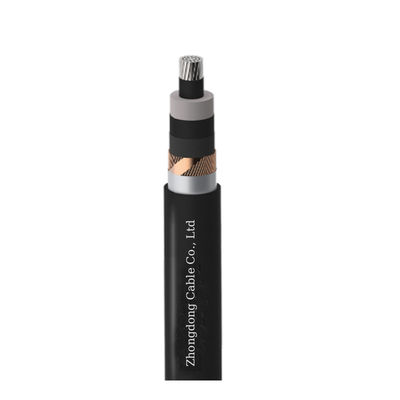

HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks

HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks
HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks

Large Image :  HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,VED,TUV
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks

Description
Voltage: 36/60kV Armour: Steel Tape
Screen: Copper Insulation: XLPE
Sheath: HDPE Conductor: Copper Or Aluminium
Highlight:

HDPE Copper Screen High Voltage Cable

,

Distribution Networks High Voltage Cable

HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks





Application



High Voltage cables for distribution networks; also for connection to generation units and plant and process connection. For installation in ground, in water outdoors, indoors and in cable ducts for power stations, industry and distribution networks



Construction



  1. Wrapping: Semi-conductive water swelling tape
  2. Metallic Screen: Copper wires and equalising tape
  3. Wrapping:Semi-conductive water swelling tape
  4. Tape: Longitudinally applied aluminium tape coated with PE copolymer
  5. Sheath: HDPE (High Density Polyethylene)



Description



  1. Voltage Rating (Uo/U)(Um): 36/60 (72.5) kV
  2. Short Circuit Temperature: +250°C
  3. Operating Temperature: -30°C to 90°C
  4. Minimum Installation Temperature: -20°C



Dimension



NO.OF CORES

NOMINAL CROSS
SECTIONAL REA
 mm?

NOMINAL DIAMETER OF CONDUCTOR
mm

NSULATION
mm

METALLICSCREEN

NOMINAL OUTER
  DIAMETER
OFCABLE
 mm

NOMINAL
WEIGHT
kg/km

MAXIMUM
PULLING
FORCE
mm

MINIMUM
BENDING
  RADIUS
 m

Nominal
thickness

Nominal
diamter over

Nominal cross
section
mm²

Nominal
diameter over
mm

1

 120RM

  12.5

10.0

33.7

35

37.5

   44

1920

4.2

  1.1

1

 150RM

  14.1

10.0

35.3

35

39.1

   45

2070

5.3

  1.1

1

 185RM

  15.8

10.0

37.0

35

40.8

   47

2240

6.5

  1.2

1

 240RM

  17.9

10.0

39.1

35

42.9

   49

2480

8.4

  1.2

1

 300RM

  20.0

10.0

41.2

35

45.0

   52

2750

10.5

  1.3

1

 400RM

  22.9

10.0

44.5

35

48.7

   55

3190

14.0

  1.4

1

 500RM

  25.7

10.0

47.3

35

51.5

   58

3630

17.5

  1.5

1

 630RM

  29.3

10.0

51.1

35

55.3

   63

4220

22.1

  1.6

1

 800RM

  33.0

10.0

54.8

35

59.0

   67

4860

28.0

  1.7

1

 1000RM

  38.0

10.0

60.2

35

64.8

   73

5800

35.0

  1.8

1

 1200RM

  42.5

10.0

64.7

50

69.3

   78

6800

42.0

  1.9

1

1200RMS

  43.0

10.0

67.2

50

71.8

   80

7070

42.0

  2.0

1

1400RMS

  45.1

10.0

69.3

50

73.9

   82

7750

49.0

  2.1

1

1600RMS

  48.5

10.0

72.7

50

77.3

   86

8520

56.0

  2.2

1

1800RMS

  52.7

10.0

76.9

50

81.5

   91

9450

63.0

  2.3

1

2000RMS

  54.5

10.0

78.7

50

83.3

   92

10020

70.0

  2.3

1

2500RMS

  59.0

10.0

84.2

50

89.2

   99

11580

87.5

  2.5

1

3000RMS

  67.0

10.0

92.2

50

97.2

   107

13990

100.0

  2.7
