69kV Copper Wire Screen HV Power Cable IEC 60840 Standard XLPE Insulation

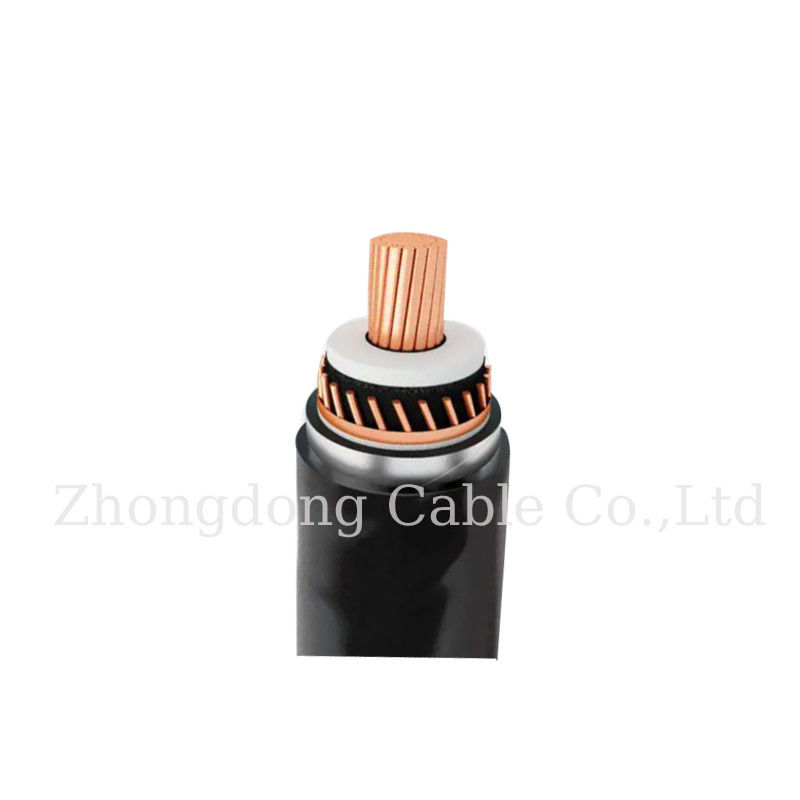

Large Image : 69kV Copper Wire Screen HV Power Cable IEC 60840 Standard XLPE Insulation

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,VED,TUV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

69kV Copper Wire Screen HV Power Cable IEC 60840 Standard XLPE Insulation

Description

Voltage:	40/69kV	Armour:	Steel Tape
Screen:	Copper	Insulation:	XLPE
Sheath:	HDPE	Conductor:	Aluminium
Highlight:	HV Power Cable IEC 60840 Standard , XLPE Insulation HV Power Cable , 69kV Hv Xlpe Cable

69kV Copper Wire Screen High Voltage Cable for IEC 60840 standard

Application

Cables are suitable for use in high voltage transmission networks, in systems of rated voltages from 60 kV grade up to and including 69kV grade.

Construction

Stranded circular or segmental (Milliken) compacted copper conductor, extruded semi-conducting layer as a conductor screen, XLPE insulation,extruded semi-conducting layer as an insulation screen, semi-conductive swelling tape, helically applied copper wires as a metallic screen, semiconductive swelling tape, aluminum laminated tape, extruded layer of PE
compound as an outer jacket and graphite coating or extruded semi-conducting layer as electrode for DC voltage sheath testing

Technical Data

Conductor			Insulation				Metallic Screen		Outer Jacket
Nominal Area	Max.DC Resistance at 20℃	Max.AC Resistance at 90℃	Nominal Thickness of Insulabon Layers			Electrostatic Capacitance	Nominal Area of Copper Wires	Short Circuit Capacity (1 Sec.)(1)	Nominal Thickness	ApprOX. Overall Diameter	Approx. Overall Welght
Nominal Area	Max.DC Resistance at 20℃	Max.AC Resistance at 90℃	Cond. Screen	XLPE	Ins. Screen	Electrostatic Capacitance	Nominal Area of Copper Wires	Short Circuit Capacity (1 Sec.)(1)	Nominal Thickness	ApprOX. Overall Diameter	Approx. Overall Welght
mm2	Q/km	Ω/km	mm	mm	mm	μF/km	mm2	kA	mm	mm	kg/m
240 R	0.0754	0.0977	1.0	16.5	1.75	0.144	305	40.0	3.95	72.7	8.30
	300 R 0.0601	0.0786	1.0	16.5	1.75	0.155	305	40.0	3.95	75.1	9.02
	400 R 0.0470 0.0625		1.0	16.5	1.75	0.167	305	40.0	3.95	77.7	9.98
			1.0	16.5	1.75	0.182	305	40.0	3.95	81.1	11.27
630 R		0.0283 0.0404	1.0	16.5	1.75	0.197	305	40.0	3.95	84.6	12.72
	800 R 0.0221	0.0336	1.0	16.5	1.75	0.215	305	40.0	3.95	88.6	14.70
1000 S		0.0176 0.0239	1.5	16.5	1.75	0.257	305	40.0	3.95	97.7	17.28
1200 S		0.0151 0.0210	1.5	16.5	1.75	0.274	305	40.0	3.95	101.7	19.42
1400 S	0.0129	0.0185	1.5	16.5	1.75	0.282	305	40.0	3.95		103.7 21.42
1600 S	0.0113	0.0167	1.5	16.5	1.75	0.300	305	40.0	3.95	107.7	23.17
	2000 S 0.0090	0.0142	1.5	16.5	1.75	0.321	305	40.0	3.95	112.7	26.89
