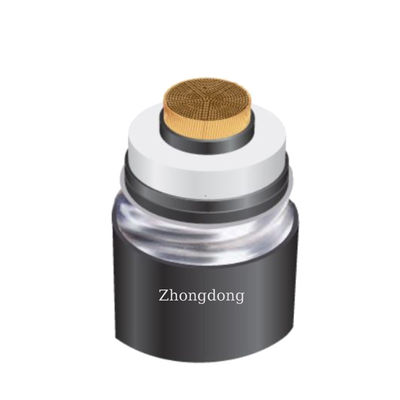

240 -2000MM2 66kV High Voltage Cable CU XLPE CAS PE PVC LSHF Underground Cable

Nominal cross- sectional area

Shape of conductor

Nominal Diameter of conductor

Nominal Thickness of conductor screen

Nominal Thickness of Insulation

Nominal Thickness of Insulation screen

Nominal Thickness of aluminum sheath

Nominal Thickness of Outer sheath

Approx. Overall diameter of cable

Approx. Weight of cable

Maximum DC resistance at 20oC

Capacitance

mm²

mm

mm

mm

mm

mm

mm

mm

kg/m

Ω/km

µF/km

240

CC

18.1

1.0

11.0

1.0

1.6

3.5

69

5.5

0.0754

0.20

300

CC

20.4

1.0

11.0

1.0

1.6

3.5

72

6.3

0.0601

0.22

400

CC

23.2

1.0

11.0

1.0

1.7

3.5

75

7.2

0.0470

0.23

500

CC

26.3

1.0

11.0

1.0

1.8

4.0

79

8.6

0.0366

0.25

630

CC

30.2

1.0

11.0

1.0

1.8

4.0

83

10.1

0.0283

0.28

800

CC

34.0

1.0

11.0

1.0

1.9

4.0

87

12.0

0.0221

0.30

1000

4S

38.7

1.0

11.0

1.0

2.0

4.0

92

14.4

0.0176

0.33

1200

4S

41.8

1.0

11.0

1.0

2.1

4.5

98

16.7

0.0151

0.35

1600

4S

48.3

1.0

11.0

1.0

2.2

4.5

105

20.9

0.0113

0.39

2000

5S

54.3

1.0

11.0

1.0

2.4

4.5

112

25.4

0.0090

0.43
