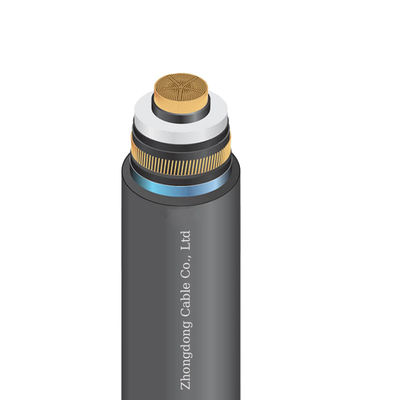

Copper Wire Screen 110kV High Voltage Transmission Cable XLPE Insulation LSHF Jacket

Copper Wire Screen 110kV High Voltage Transmission Cable XLPE Insulation LSHF Jacket
Copper Wire Screen 110kV High Voltage Transmission Cable XLPE Insulation LSHF Jacket

Large Image :  Copper Wire Screen 110kV High Voltage Transmission Cable XLPE Insulation LSHF Jacket

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,VED,TUV
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Copper Wire Screen 110kV High Voltage Transmission Cable XLPE Insulation LSHF Jacket

Description
Voltage: 110kV Screen: Copper Wire
Insulation: XLPE Sheath: PVC
Conductor: Copper Application: Underground
Highlight:

110kV High Voltage Transmission Cable

,

LSHF Jacket High Voltage Transmission Cable

,

High Voltage Transmission Cable XLPE Insulation

Copper Wire Screen 110kV High Voltage Cable XLPE Insulation LSHF Jacket Cable





Application



Used for underground power transmission lines; laid on cable ladder, tray, buried direct in the ground or in duct in the ground



Construction



1.Conductor
2.Conductor screen
3.XLPE insulation
4.Insulation screen
5.Semiconducting tape
6.Copper wire screen
7.Aluminum laminated tape
8.PE or PVC outer sheath (Graphite coating or extruded semiconducting)



Description



  1. Voltage Rating (Uo/U)(Um) : 64/110 kV
  2. Temperature Rating: Short Circuit Temperature: +250°C
  3. Operating Temperature: -30°C to 90°C
  4. Minimum Installation Temperature: -20°C



Tecnical Data



Nominal area

[mm²]

240

300

400

500

630

800

1000

1200

1600

2000

2500

Direct buried in ground

[A]

528

597

681

775

884

994

1169

1264

1456

1618

1706

Buried in duct

[A]

495

559

650

739

841

945

1106

1231

1415

1570

1656



In free air

Trefoil formation

[A]

605

692

800

922

1065

1208

1465

1595

1860

2089

2203

Flat formation

[A]

682

783

909

1053

1226

1406

1695

1849

2185

2487

2623
