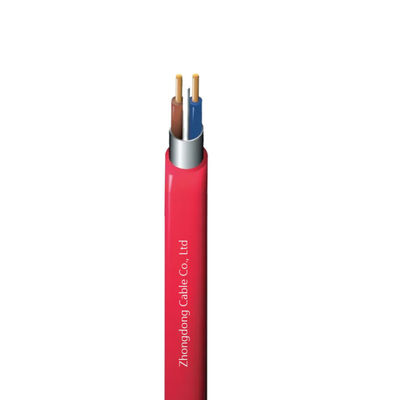

Steel Tape Armoured STA Fire Retardant Cable PVC Sheathed Control Cable

Name: Steel Tape Armoured STA Fire Retardant Cable PVC Sheathed Control Cable
Brand: Zhongdong Cable Co., Ltd.
Availability: InStock

All Products

Low Voltage Cable
(24)

Medium Voltage Cable
(24)

High Voltage Cable
(14)

Bare Conductor
(20)

Aerial Bundled Cable ABC
(24)

Aluminium Conductor Cable
(27)

Armoured Electrical Cable
(20)

XLPE Insulated Power Cable
(19)

PVC Insulated Power Cable
(16)

Solar Cable
(16)

Electrical Wire
(11)

Rubber Cable
(10)

Control Cable
(11)

Shielded Instrument Cable
(10)

Low Smoke Zero Halogen Cable
(12)

Fire Resistant Cable
(9)

Prefabricated Branch Cable
(6)

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Description

Usage:	Access Control System	Insulation:	XLPE PE PVC
Voltage:	300/500V ,450/750V	Length:	Customized
Conductor Material:	Copper	Packing:	Neutral Carton Packing Or Customized
Highlight:	Steel Tape STA Fire Retardant Cable , PVC Sheathed Fire Resistant Armoured Cable

Steel Tape Armoured STA Fire Resistant Flame Retardant PVC Sheathed Control Cable

Application

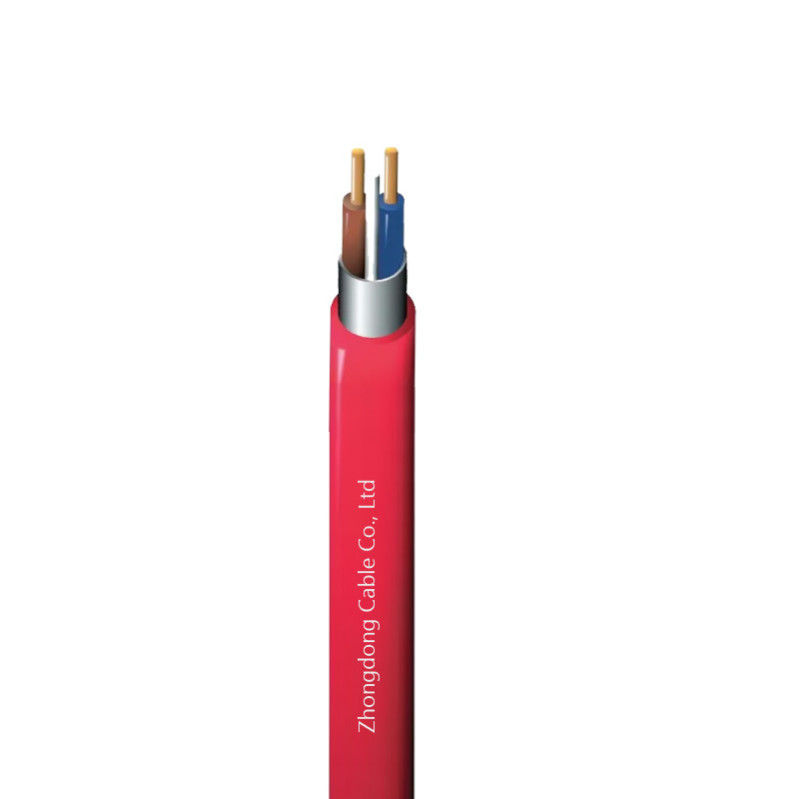

Steel Tape Armoured STA Fire Retardant Cable PVC Sheathed Control Cable 0

Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
Bending Radius:16D for armored cable

Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	Overall Diameter mm		Min resistance of insulation at 70ºC MΩ/km	Max.D.C resistance of at 20ºC MΩ/km	Approx Weight (kg/km)
Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	min	max	Min resistance of insulation at 70ºC MΩ/km	Max.D.C resistance of at 20ºC MΩ/km	Approx Weight (kg/km)
4x2.5	0.8	2x0.2(0.3)	1.5	13.4	16.1	0.001	7.41	450
4x4	0.8	2x0.2(0.3)	1.5	14.4	17.4	0.0085	4.61	505
4x6	0.8	2x0.2(0.3)	1.5	15.6	18.8	0.007	3.08	619
4x10	1	2x0.2(0.3)	1.7	19.4	23.5	0.0065	1.83	947
5x2.5	0.8	2x0.2(0.3)	1.5	14.3	17.2	0.001	7.41	506
5x4	0.8	2x0.2(0.3)	1.5	15.4	18.6	0.0085	4.61	586
5x6	0.8	2x0.2(0.3)	1.7	16.7	20.2	0.007	3.08	737
5x10	1	2x0.2(0.3)	1.7	21	25.4	0.0065	1.83	1125
7x0.75	0.6	2x0.2(0.3)	1.5	11.8	14.2	0.012	24.5	317
7x1.0	0.6	2x0.2(0.3)	1.5	12.2	14.7	0.011	18.1	425
7x2.5	0.7	2x0.2(0.3)	1.5	13.5	16.3	0.01	7.41	554
7x4	0.8	2x0.2(0.3)	1.5	15.2	18.4	0.0085	4.61	701
7x6	0.8	2x0.2(0.3)	1.7	18	21.7	0.007	3.08	900
7x10	1	2x0.2(0.3)	1.7	22.7	27.4	0.0065	1.83	1397
10x0.75	0.6	2x0.2(0.3)	1.5	13.8	16.7	0.012	24.5	449
10x1	0.6	2x0.2(0.3)	1.5	14.4	17.4	0.011	18.1	558
10x1.5	0.7	2x0.2(0.3)	1.5	16.1	19.5	0.011	12.1	753
10x2.5	0.8	2x0.2(0.3)	1.7	18.8	22.7	0.01	7.41	956
10x4	0.8	2x0.2(0.3)	1.7	20.5	24.8	0.0085	4.61	1203
10x6	0.8	2x0.2(0.3)	1.7	22.5	27.1	0.007	3.08	1534
