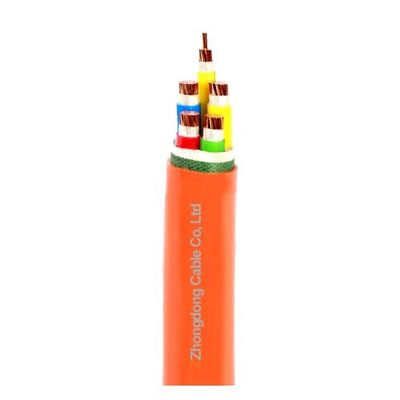

0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C IEC 60331

I'm Online Chat Now

0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C IEC 60331

0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331
0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331

Large Image :  0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C IEC 60331

Product Details:
Place of Origin: Hebei,China
Brand Name: Zhongdong
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Payment & Shipping Terms:
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week

0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C IEC 60331

Description
Usage: Access Control System Insulation: XLPE PE PVC
Voltage: 300/500V ,450/750V Length: Customized
Conductor Material: Copper Packing: Neutral Carton Packing Or Customized

 0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331



APPLICATION


This product is suitable for use in line filling circuits rated voltage not exceeding 0.6/1kV for power transmission and distribution

CONSTRUCTION

Conductor:Class 1/Class 2 stranded Copper conductor

Refractory layer:Single sided gold mica tape

Insulation:XLPE

Filler(options):Polypropylene mesh tear rope or flame-retardant filling

Outer sheath:Polyvinyl chloride (PVC)


0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331 00.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331 1




CHARACTERISTIC



Voltage Rating:Uo/U:0.6/1kV  Um:1.2kV

Temperature Rating

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

 Minimum Bending Radius:Single core:20D multi core:15D (D is the actual outer diameter of the cable)



PARAMETERS




Spec
mm²

Conductor diameter              mm

Approx outer diameter of cable    mm

Approx cable weight

kg/km

NH

ZAN

ZBN

ZCN

NH

ZAN

ZBN

ZCN

1×1.5

1.39

6.0

6.0

6.0

6.0

53.6

55.1

55.1

55.1

1×2.5

1.76

6.3

6.3

6.3

6.3

66.2

67.8

67.8

67.8

1×4

2.22

6.8

6.8

6.8

6.8

84.1

85.9

85.9

85.9

1×6

2.74

7.3

7.3

7.3

7.3

107.2

109.1

109.1

109.1

1×10

4.0

8.6

8.6

8.6

8.6

153.6

155.6

155.6

155.6

1×16

5.0

9.6

10.2

10.2

10.2

215.7

228.6

228.6

228.6

1×25

6.1

11.1

11.7

11.7

11.7

315.1

329.8

329.8

327.9

1×35

7.2

12.2

12.8

12.8

12.8

411.3

427.2

427.2

425.2

1×50

8.4

13.6

14.6

14.8

14.2

534.8

565.0

567.6

552.9

1×70

9.2

14.6

15.6

15.8

15.2

728.1

760.3

763.0

747.4

1×95

10.9

16.5

17.5

17.7

17.1

983.4

1019.9

1022.9

1005.5

1×120

12.2

18.0

19.0

19.2

18.6

1217.8

1257.3

1260.5

1237.6

1×150

13.6

20.0

21.0

21.2

20.6

1497.2

1541.4

1544.8

1519.3

1×185

15.2

22.2

23.2

23.4

22.8

1863.1

1912.4

1916.2

1887.6

1×240

17.4

24.7

25.8

25.9

25.3

2407.7

2463.0

2467.1

2432.4

1×300

19.5

27.0

28.1

27.6

27.6

2981.1

3041.2

3018.3

3007.8

1×400

22.0

30.3

31.3

30.9

30.9

3782.5

3851.0

3825.4

3812.4

1×500

24.8

33.7

34.7

34.3

34.3

4791.2

4867.8

4839.5

4824.3

1×630

28.2

37.7

38.7

38.3

38.3

6138.8

6224.9

6193.4

6175.6

1×800

34.0

44.1

45.1

44.7

44.7

7994.7

8095.8

8059.2

8037.4

2×1.5

1.39

10.5

10.8

10.8

10.8

129.4

143.3

143.3

143.3

2×2.5

1.76

11.2

11.5

11.5

11.2

158.0

172.8

172.8

161.9

2×4

2.22

12.2

12.5

12.5

12.2

198.4

215.0

215.0

202.7

2×6

2.74

13.2

13.5

13.5

13.2

249.8

268.7

268.7

254.5

2×10

4.0

15.7

16.0

16.0

16.0

355.6

402.8

407.8

373.4

2×16

5.0

17.7

18.0

18.0

18.0

492.1

553.6

559.3

514.0

2×25

6.1

21.1

21.1

21.1

21.1

717.2

798.9

805.6

740.6

2×35

7.2

23.3

23.3

23.3

23.3

927.1

1029.7

1037.2

955.8

2×50

8.4

26.1

26.5

26.1

26.1

1198.3

1362.4

1333.7

1234.3

2×70

10.0

29.7

30.1

29.7

29.7

1649.0

1862.1

1829.5

1695.8

2×95

12.0

34.0

34.5

34.0

34.0

2232.5

2508.8

2470.5

2292.7

2×120

12.2

35.0

35.4

35.0

35.0

2685.7

2976.2

2936.3

2748.8

2×150

13.6

38.8

38.8

38.8

38.8

3292.1

3613.4

3603.1

3369.2

2×185

15.2

43.0

43.0

43.0

43.0

4081.5

4479.2

4461.3

4175.7

2×240

17.4

48.2

48.2

48.2

48.2

5269.2

5769.9

5748.0

5386.2

2×300

19.5

53.2

53.2

53.2

53.2

6546.9

7130.4

7130.4

6687.8

2×400

22.0

59.3

59.3

59.3

59.3

8267.2

8998.7

8998.7

8441.7

3×1.5

1.39

11.1

11.4

11.4

11.4

155.3

169.3

169.3

169.3

3×2.5

1.76

11.9

12.2

12.2

11.9

194.6

209.3

209.3

198.8

3×4

2.22

12.9

13.2

13.2

12.9

250.4

266.9

266.9

255.0

3×6

2.74

14.0

14.3

14.3

14.0

322.1

340.7

340.7

327.2

3×10

4.0

16.7

17.0

17.0

17.0

466.6

508.2

513.6

483.7





FACTORY


0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331 2


APPLICATION


0.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331 30.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331 40.6/1kV Fire Resistant Power Cable CU/ XLPE/ PVC 07V-Z IEC 60332-3C  IEC 60331 5


FAQ


Q: Are you a manufacturer or trading company?

A: We are a factory with 20 years of experience and more than 50 engineers.



Q: Why choose us?

A: 1,We have over 20 years of experience in the wire industry

2,Our factory equipped with advanced Italian production lines, ensuring high-quality products and the ability to resolve any issues independently, guaranteeing customer satisfaction.



Q: Do you offer OEM & ODM services?

A: Yes, we have a professional team of engineers dedicated to providing OEM & ODM services.



Q: What’s your Minimum Order Quantity?

A: We adopt flexible MOQ Policy



Q: How can I get a sample to test your quality?

A: Sample is free, but the freight charge should be paid.
