CE Certification Fire Resistant Cable 450V 750V Fire Rated Flexible Cable

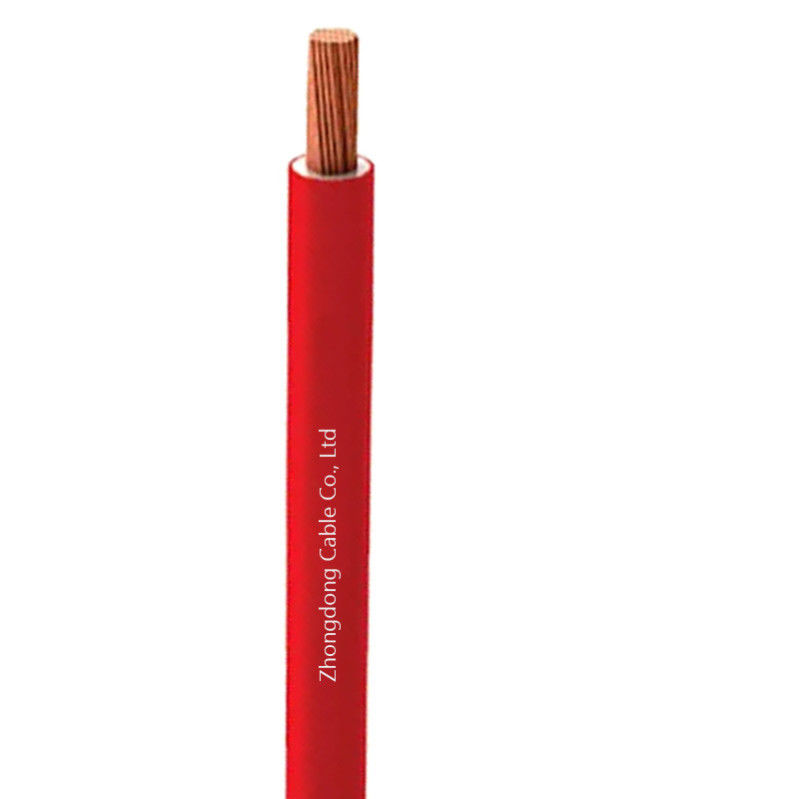

Large Image : CE Certification Fire Resistant Cable 450V 750V Fire Rated Flexible Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC 60502-1
Model Number:	WDZN-YJY

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel wooden drum
Delivery Time:	10days
Payment Terms:	L/C,T/T
Supply Ability:	100km/week

Contact Now

CE Certification Fire Resistant Cable 450V 750V Fire Rated Flexible Cable

Description

Size:	1.5sqmm~800sqmm	Conductor Typ:	Copper
Sheath Color:	Sheath Color	Working Temperature:	90℃
Jacket:	LSZH (LOW SMOKE AND HELOGEN FREE)	Voltage Rating:	Uo/U 300/500V
Highlight:	CE Certification Fire Resistant Cable , 750V Fire Rated Flexible Cable

CE Certification Fire Resistant Cable Flexible Cable/Rated voltage 450/750V

Application

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Construction

Conductor: Plain annealed copper (class 2, normal stranded or compact stranded)
Fire barrier: Mica tape
Insulation: XLPE
Filler, binder and inner covering: PP, PET, LSZH
Outer sheath: LSZH

Technical parameters

Single Core

Cross section of conductor(mm²)	Conductor structure	Insulation Thickness(mm)	Copper sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
1×70	14	1.1	1.4	15.1	0.268
1×95	19	1.1	1.5	17.3	0.193
1×120	24	1.2	1.5	19.0	0.153
1×150	30	1.4	1.6	20.9	0.124
1×185	37	1.6	1.6	23.0	0.0991
1×240	48	1.7	1.7	25.7	0.0754
1×300	61	1.8	1.8	28.3	0.0601
