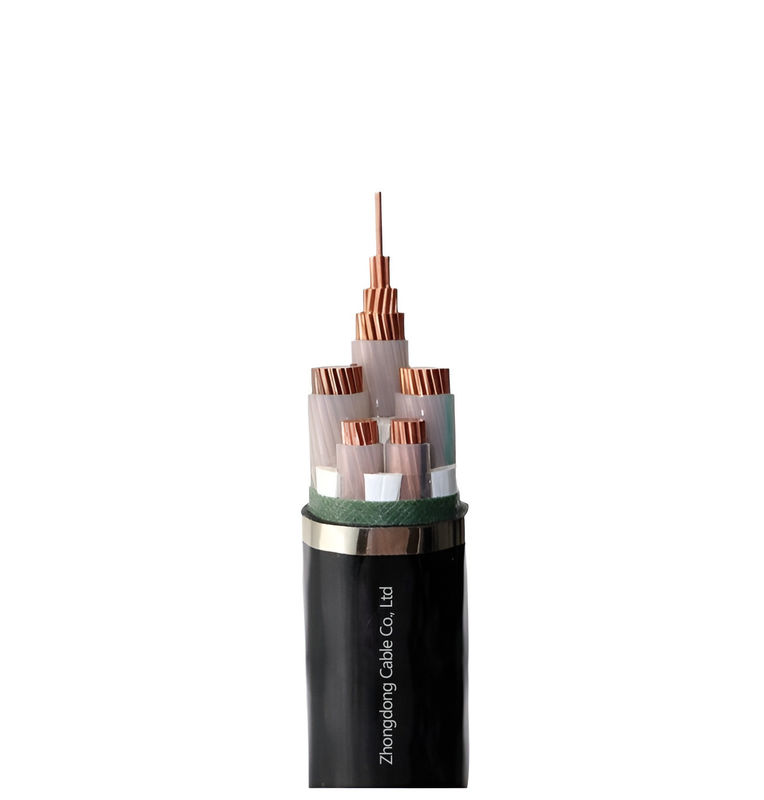

Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O

Halogen-Free Flame-Resistant Cable NXXH N2XH-J N2XH-O

APPLICATION & CHARACTERISTICS

1. N2XH Cable Series

• Core Applications:

  • Petrochemical processing units (reactor jackets, distillation columns)

  • Steel mill conveyor systems (blast furnace zones, rolling mills)

  • Aerospace engine compartment wiring

• Technical Characteristics:

  • Continuous service temperature: -40°C to +250°C

  • Halogen-free flame retardant (IEC 60332-3C compliant)

  • Oil/fuel resistance (per ASTM D471)

  • Cross-linked polyethylene (XLPE) insulation

2. N2XH-J Cable Model

• Specialized Features:

  • Mechanically enhanced jacket for vibration-prone applications

  • EMI shielding (85dB attenuation @ 1GHz)

  • Flexible multi-conductor design (up to 50 cores)

• Typical Deployment:

  • Automotive testing rigs (powertrain dynamometers)

  • Semiconductor wafer processing equipment

  • High-speed rail signal transmission

3. N2XH-O Cable Model

• Unique Advantages:

  • Oxygen-free copper conductors (99.99% purity)

  • Radiation-resistant properties (10^6 Gy tolerance)

  • Moisture-blocking layers for marine applications

• Critical Use Cases:

  • Nuclear facility control circuits

  • Deep-sea ROV tether systems

  • Cryogenic plant instrumentation

CONSTRUCTION

1. N2XH Cable Structure

• Conductor: Typically composed of high-purity copper or aluminum, annealed for flexibility and low resistance.

• Insulation: Cross-linked polyethylene (XLPE) insulation provides excellent thermal resistance (up to 90°C) and dielectric strength.

• Shielding: A concentric copper tape or braid shield minimizes electromagnetic interference (EMI).

• Jacket: Thermoplastic or thermosetting material (e.g., PVC or LSZH) offers abrasion resistance and flame retardancy.

2. N2XH-J Cable Structure

• Conductor: Similar to NXXH but may include additional stranding for enhanced flexibility.

• Insulation: XLPE with higher dielectric breakdown voltage, suitable for industrial high-voltage applications.

• Armor: Steel-wire or tape armor protects against mechanical stress (e.g., rodent damage or crushing).

• Outer Jacket: Reinforced with fiberglass or aramid yarn for tensile strength in harsh environments.

3. N2XH-O Cable Structure

• Conductor: Copper with silver plating for improved conductivity in corrosive environments.

• Insulation: Silicone rubber insulation for extreme temperature resilience (-60°C to +200°C).

• Shielding: Dual-layer shielding (aluminum foil + copper braid) for superior EMI protection.

• Jacket: Fluoropolymer (e.g., PTFE) resists UV, chemicals, and moisture, ideal for outdoor installations.
