Cusom Color High Voltage Cable 2XS(F)2Y A2XS(F)2Y 110kV Power Cable

High Voltage Cable 2XS(F)2Y, A2XS(F)2Y 110kV Power Cable

Application

The 2XS(F)2Y cable is a type of power cable with specific design features, including cross-linked polyethylene (XLPE) insulation and a flame-retardant sheath. It is commonly used in the following applications:

1. ‌Industrial Power Distribution:Suitable for fixed installations in industrial plants, manufacturing facilities, or workshops due to its high mechanical strength and resistance to harsh environments.
2. Public Infrastructure:Deployed in tunnels, subways, or underground utility networks where flame-retardant (F) properties are critical for fire safety compliance.
3. Outdoor and Underground Installations:Resistant to moisture, chemicals, and UV radiation, making it ideal for direct burial, cable ducts, or outdoor power transmission systems.
4. Renewable Energy Systems:Used in solar farms or wind power installations to connect distributed energy sources to grids, thanks to its durability and stable electrical performance.
5. ‌High-Temperature Environments:XLPE insulation allows operation at elevated temperatures (up to 90°C), suitable for applications near heat sources or in thermally demanding settings.
6. ‌Fire-Prone Areas: Flame-retardant sheath minimizes fire propagation risks, complying with safety standards for commercial buildings, hospitals, or densely populated zones.
7. Railway and Transportation: Applied in railway signaling systems, station power grids, or traction networks where reliability and flame resistance are mandatory.

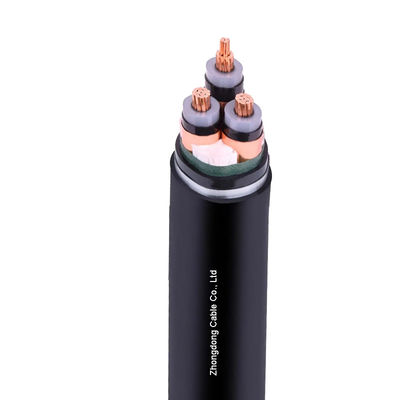

Construction

1. Conductor: Copper or aluminum for good conductivity
2. Insulation: XLPE (cross-linked polyethylene)
3. Shielding: Metallic or semi-conductive layers to prevent electrical interference
4. Armor (optional): Protects against mechanical damage in underground or harsh environments
5. Outer Sheath: Provides environmental resistance and durability

Description

1. Voltage Rating (Uo/U)(Um):64/110kV (123kV)
2. Highest Network Voltage: 123kV
3. Operating Temperature: -30°C to +90°C
4. Short Circuit Temperature: +250°C
5. Overload Temperature: +130°C

Specification
