Copper Conductor STA Armoured Fire Protection Cable XLPE Insulated PVC Sheathed

Copper Conductor STA Armoured Fire Resistant Cable XLPE Insulated PVC Sheathed Cable

Application

Our cables have been widely used in the energy field (power stations, nuclear power posts, urban and rural power grids, coal mines, petrochemicals, etc.), transportation field (civil aviation, nuclear power plant) network, coal mine, petrochemicals, etc.), transportation field (civil aviation airports, railroads and urban rail transportation, ships and transportation field (civil aviation, airport, railway and urban railway transportation, ships and ports, etc.), engineering field (engineering construction, steel, metallurgy, construction, etc.) Iron, metallurgy, construction, etc.) of key projects.

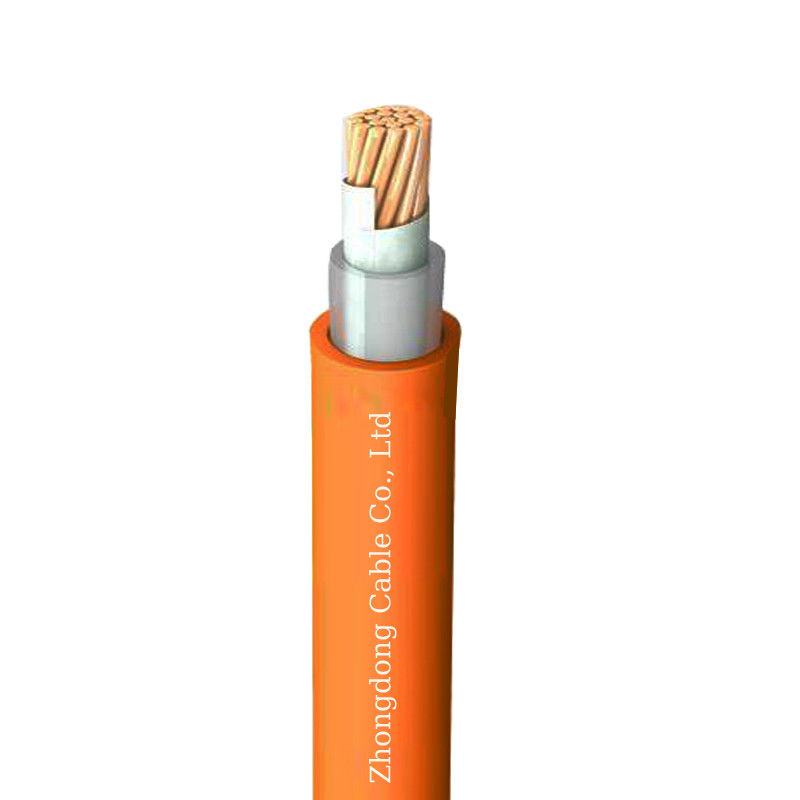

Construction

1. Conductor: Plain Annealed copper conducto
2. Mica tape:Each individual conductor is wrapped mica tape which can withstand the flame temperature up to 1100 °C.
3. Insulation:Cross-linked polyethylene (XLPE)
4. Amour:Steel wire amoured

Characteristic

1. Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
2. Temperature range in motion -5°C till +70°C
3. fixed -20°C till +70°C
4. Operating temperature short circuit °C 250
5. Short circuit time max. [sec] 5
6. Bending radius min. x diameter 15
7. Flammability standard EN 60332-1-2
