Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length

Large Image : Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC 60502-1
Model Number:	WDZN-YJY

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel wooden drum
Delivery Time:	10days
Payment Terms:	L/C,T/T
Supply Ability:	100km/week

Contact Now

Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length

Description

Size:	1.5sqmm~800sqmm	Conductor Typ:	Copper
Sheath Color:	Sheath Color	Working Temperature:	90℃
Jacket:	LSZH (LOW SMOKE AND HELOGEN FREE)	Voltage Rating:	Uo/U 300/500V
Highlight:	Custom Length Fire Resistant Cable , LSZH Fire Resistant Fiberglass Braid Wire

Low Smoke Zero Halogen Fire Resistant Cable Fiberglass Braid Wire

Application

Fire-resistant cables are designed to maintain circuit integrity and continue operating during fire emergencies, ensuring critical systems remain functional. These cables are essential in environments where fire safety and uninterrupted power supply are priorities

Low Smoke Zero Halogen LSZH Fire Resistant Cable Fiberglass Braid Wire Custom Length 0

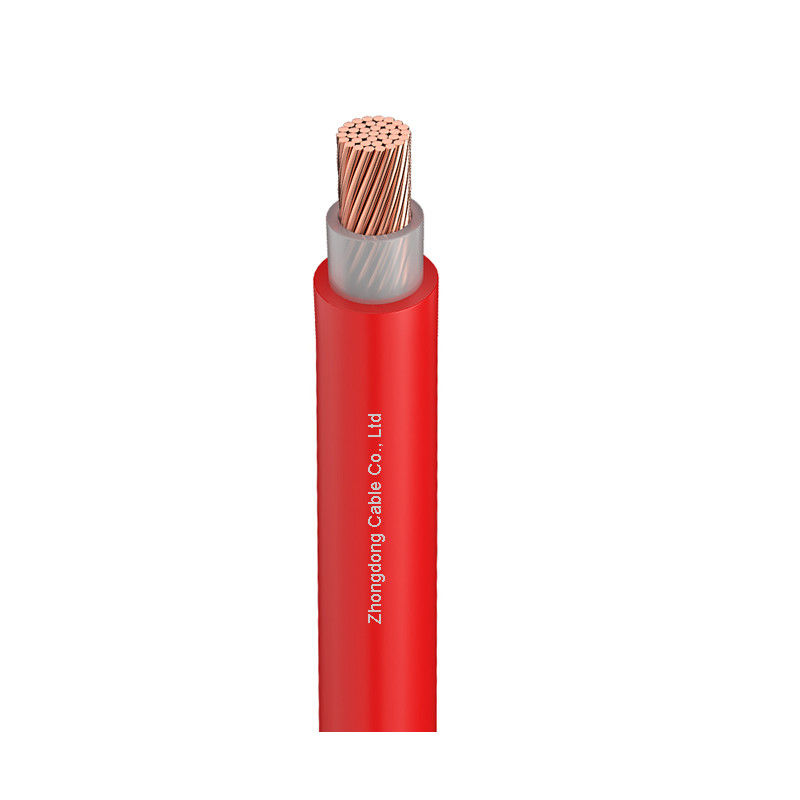

Construction

Conductor: Plain annealed copper (class 2, normal stranded or compact stranded)
Fire barrier: Mica tape
Insulation: XLPE
Filler, binder and inner covering: PP, PET, LSZH
Outer sheath: LSZH

Advantage

Life Safety‌: Protects human lives by maintaining critical systems during fires.
Asset Protection‌: Minimizes damage to infrastructure and equipment.
‌Regulatory Compliance‌: Meets stringent building codes and safety regulations.

Technical parameters

Single Core

Cross section of conductor(mm²)	Conductor structure	Insulation Thickness(mm)	Copper sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
1×70	14	1.1	1.4	15.1	0.268
1×95	19	1.1	1.5	17.3	0.193
1×120	24	1.2	1.5	19.0	0.153
1×150	30	1.4	1.6	20.9	0.124
1×185	37	1.6	1.6	23.0	0.0991
1×240	48	1.7	1.7	25.7	0.0754
1×300	61	1.8	1.8	28.3	0.0601
