15/35kV AAC AAAC ACSR Aerial Bundled Cable for Overhead Power Lines

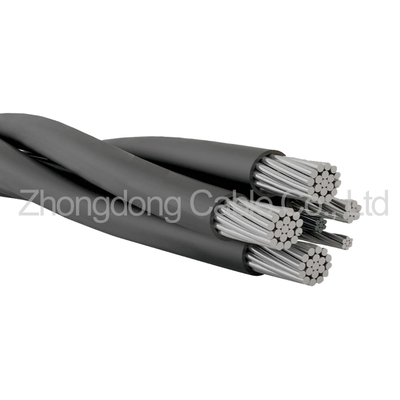

Large Image : 15/35kV AAC AAAC ACSR Aerial Bundled Cable for Overhead Power Lines

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,TUV,CE
Model Number:	ABC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

15/35kV AAC AAAC ACSR Aerial Bundled Cable for Overhead Power Lines

Description

Application:	Overhead Distribution Line	Cores Nos:	1,2,3,4 More Multicore
Rated Voltage:	15/35kV	Installation Degree:	-20℃-90℃
Neutral Messengers:	AAC, AAAC Or ACSR	Insulation:	PE/PVC
Highlight:	15/35kV AAC aerial bundled cable , AAAC overhead power line cable , ACSR ABC cable for power lines

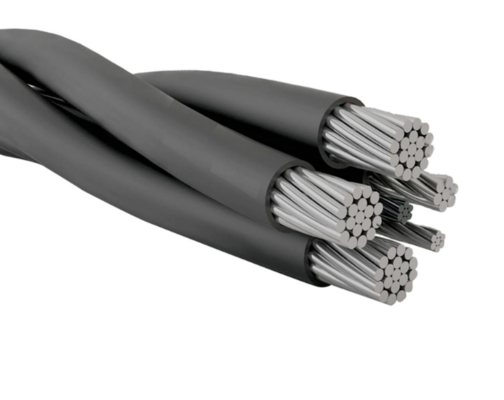

AAC AAAC ACSR Self Supporting Aerial Bundled Cable ABC Cable for Overhead Power Line

APPLICATION

AAC (All Aluminum Conductor) and AAAC (All Aluminum Alloy Conductor) are widely used in medium-voltage distribution networks (e.g., rural electrification, urban overhead lines) due to their lightweight and corrosion resistance.
ACSR (Aluminum Conductor Steel Reinforced) is ideal for high-voltage transmission lines (e.g., 11kV-33kV) and long-distance power delivery, thanks to its steel core for enhanced mechanical strength.

CONSTRUCTION

AAC/AAAC: Solid or stranded aluminum/aluminum alloy conductors (e.g., 95mm²×3 + 70mm²×1 for neutral line)
ACSR: Aluminum strands wrapped around a steel core (e.g., 7/2.8mm steel core with 26/2.8mm aluminum layers)

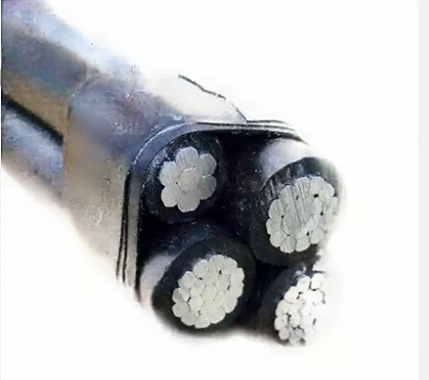

ABC Cable: Three insulated phase conductors + one neutral conductor, compactly bundled with a weather-resistant outer sheath

KEY FEATURES

Lightweight & Corrosion-Resistant: AAC/AAAC conductors reduce weight by 30-50% compared to copper, with superior durability in harsh environments
High Tensile Strength: ACSR's steel core enables long-span installations (e.g., crossing rivers or mountains)
Self-Supporting Design: ABC cables integrate insulated conductors in a bundled structure, simplifying installation and reducing costs
Temperature Resistance: XLPE insulation allows operation in -40°C to 90°C ranges, suitable for extreme climates

SPECIFICATION

Section nominal	Nominal insulation thickness	Maximum wiring passage	spark voltage Alternating current	spark voltage DC
mm2	mm	mm	KV	KV
10	1.14	389	10	16.5
16	1.14	453	10	16.5
25	1.14	530	12.5	21
35	1.14	601	15	24
50	1.52	742	15	24
70	1.52	843	15	24
95	1.52	950	15	24
120	2.03	1109	15	24
150	2.03	1210	15	24
185	2.03	1315	15	24
240	2.03	1464	17.5	30

FAQ

1. What are the primary applications of AAC conductors?

AAC cables are ideal for medium-voltage urban/rural distribution due to their lightweight and corrosion resistance, commonly used in street lighting and temporary power grids.

2. How does AAAC differ from AAC in performance?

AAAC (Aluminum Alloy Conductor) offers higher tensile strength (30% improvement) and better thermal stability compared to pure aluminum AAC, making it suitable for coastal or industrial areas.

3. Why is ACSR preferred for high-voltage transmission?

ACSR's steel core reinforcement provides mechanical strength for long spans (e.g., river crossings) and reduces sag, critical for 11kV-33kV overhead lines.

4. What makes Self-Supporting Aerial Bundle Cables cost-effective?

These cables eliminate support wires by integrating insulated conductors in a bundled structure, cutting installation costs by 20-30%.

5. What temperature range can AAC/AAAC conductors withstand?

Standard AAC/AAAC operates at -40°C to 70°C, while XLPE-insulated variants (e.g., ABC) support -40°C to 90°C.

6. How is ACSR's steel core protected from corrosion?

The steel core is galvanized and often coated with moisture-proof varnish at connection points to prevent rust.

7. Which cable type is best for rural electrification projects?

Self-Supporting ABC (e.g., 3×70+1×50mm²) is recommended for three-phase four-wire systems due to its easy installation and low maintenance.

8. What are the mechanical stress limits for aerial conductors?

Under ice loading, stress must not exceed 60% of short-time breaking strength, with sag adjustments allowed within 10-15% of design stress.

9. Can AAC/AAAC be used in heavy industrial zones?

Yes, but AAAC is preferred for its enhanced chemical resistance to pollutants in industrial areas.

10. What standards govern ACSR conductor connections?

Connecting tubes must align perfectly to avoid unbalanced forces, followed by anti-corrosion coating application.
